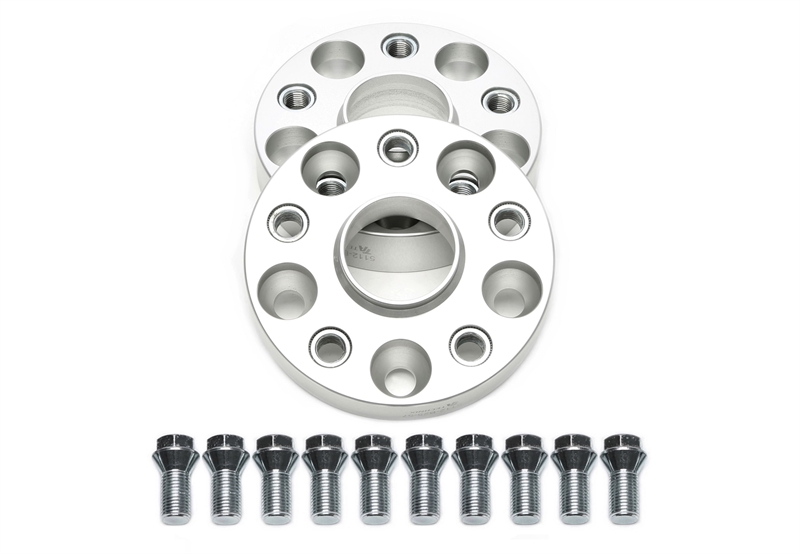

TA Technix wheel spacer set
bolt circle 5x112
Hub bore: 57,1
mounting bolts 10x M14x1.5x20mm
for original wheel bolt size M14 x1.5-60° tapered collar
with centering ring
30mm per side/60mm per axle
1 set = 2 pieces!
proof of strength is available (entry is made via an individual acceptance according to § 21 of the StVZO) in Germany
suitable for:
Audi 100, 200 (C2),Year of construction:1976-1982, Type:43*, Thread: M14x1,5, Hub hole bore: 57,1
Audi 100, 200 (C3), Quattro,year of construction:1982-1991, type:44, thread: M14x1,5, hub bore: 57,1
Audi 100, 200 (C4) Quattro, Avant and S4,year of construction:1990-1994, type:4A, thread: M14x1,5, hub bore: 57,1
Audi 80, 90 (B4) Quattro and Coupe,Year of manufacture:1991-1996, Type:8C*, Thread: M14x1,5, Hub hole bore: 57,1
Audi A3 Sportback,Year of manufacture:2004-2012, Type:8PA, Thread: M14x1,5, Hub hole bore: 57,1
Audi A3, S3,year of construction:2003-2012, type:8P, thread: M14x1,5, hub bore: 57,1
Audi A4 (B5) incl. S4, Quattro and Avant,year of construction:1994-2001, type:8D, thread: M14x1,5, hub bore: 57,1
Audi A4 (B6) incl. S4 and Cabrio,Year of construction:2000-2004, Type:8E, 8H, Thread: M14x1,5, Hub hole bore: 57,1
Audi A4 (B6) and S4 Quattro,Year of construction:2000-2004, Type:8E,QB6, Thread: M14x1,5, Hub hole bore: 57,1
Audi A4 (B7) incl. S4 and Cabrio,Year of construction:2004-2008, Type:8E, 8H, Thread: M14x1,5, Hub hole bore: 57,1
Audi A4 (B7) and S4 Quattro,Year of construction:2005-2008, Type:8E*, Thread: M14x1,5, Hub hole bore: 57,1
Audi A6 (C4) incl. Quattro, S6,year of construction:1994-1997, type:C4, thread: M14x1,5, hub bore: 57,1
Audi A6 (C5),year of construction:1997-2004, type:4B (Allroad), thread: M14x1,5, hub bore: 57,1
Audi A6 (C5) Quattro,year:1997-2004, type:4B, thread: M14x1,5, hub bore: 57,1
Audi A6 (C6),Year:2004-2011, Type:4F (Avant, Limousine), Thread: M14x1,5, Hub hole bore: 57,1
Audi A6 (C6) Quattro,year:2004-2011, type:4F (Allroad), thread: M14x1,5, hub bore: 57,1
Audi A8 (D2),year of construction:1994-2002, type:4D, thread: M14x1,5, hub bore: 57,1
Audi A8 (D3),Year of manufacture:2002-2010, Type:4E, Thread: M14x1,5, Hub hole bore: 57,1
Audi Q3,Year of manufacture:2011-, Type:8U, Thread: M14x1,5, Hub hole bore: 57,1
Audi R8, R8 Quattro,Year of manufacture:2006-, Type:42, Thread: M14x1,5, Hub hole bore: 57,1
Audi RS3,Year of manufacture:2011-, Type:8P, 8PA*, Thread: M14x1,5, Hub hole bore: 57,1
Audi RS4 (B5),Year of manufacture:1999-2001, Type:8D*, Thread: M14x1,5, Hub hole bore: 57,1
Audi RS4 (B7),Year of manufacture:2005-2009, Type:8E, Thread: M14x1,5, Hub hole bore: 57,1
Audi RS6 (C5),year of construction:2002-2004, type:4B, thread: M14x1,5, hub bore: 57,1
Audi RS6 (C6),Year of manufacture:2008-2010, Type:4F, Thread: M14x1,5, Hub hole bore: 57,1
Audi S2,Year of manufacture:1990-1995, Type:89Q, Thread: M14x1,5, Hub hole bore: 57,1
Audi S6 (C4)incl. Avant,year of construction:1994-1997, type:4A**, thread: M14x1,5, hub bore: 57,1
Audi S8 (D2),Year of construction:1996-2002, Type:4D*, Thread: M14x1,5, Hub hole bore: 57,1
Audi TT,Year of manufacture:2006-, Type:8J, Thread: M14x1,5, Hub hole bore: 57,1
Audi Urquattro,Year of manufacture:1980-1991, Type:85, Thread: M14x1,5, Hub hole bore: 57,1
Audi V8,Year of construction:1988-1994, Type:C4 (D11), Thread: M14x1,5, Hub hole bore: 57,1
Seat Alhambra,Year of manufacture:1996-2010, Type:7MS, Thread: M14x1,5, Hub hole bore: 57,1
Seat Alhambra,Year of manufacture:2010-, Type:7N, Thread: M14x1,5, Hub hole bore: 57,1
Seat Altea,year of construction:2004-, type:5P, thread: M14x1,5, hub bore: 57,1
Seat Exeo incl. ST,year of construction:2009-, type:3R, thread: M14x1,5, hub bore: 57,1
Seat Leon, Leon Cupra,Year of manufacture:2005-, Type:1P, Thread: M14x1,5, Hub hole bore: 57,1
Seat Toledo,year of construction:2004-2009, type:5P, thread: M14x1,5, hub bore: 57,1
Skoda Oktavia II,year:2004-, type:1Z, thread: M14x1,5, hub bore: 57,1
Skoda Superb,year:2001-2008, type:3U, thread: M14x1,5, hub bore: 57,1
Skoda Superb,year:2008-, type:3T, thread: M14x1,5, hub bore: 57,1
Skoda Yeti,year:2009-, type:5L, thread: M14x1,5, hub bore: 57,1
VW Beetle,year of construction:2011-, type:(5C1) - 16, thread: M14x1,5, hub bore: 57,1
VW Bus T4,year of construction:1990-2003, type:70X0*,70X02*,7DB,7DW,7DZ, thread: M14x1,5, hub bore: 57,1
VW Caddy, Caddy Life,year of construction:2003-2010, type:2K, 2KN, thread: M14x1,5, hub bore: 57,1
VW Eos,year of construction:2006-, type:1F, thread: M14x1,5, hub bore: 57,1
VW Golf V, Golf V Plus,year of construction:2003-2008, type:1K, 1KP, thread: M14x1,5, hub bore: 57,1
VW Golf VI, Golf VI R, Golf VI Plus, Variant,year of construction:2008-, type:1K, 1KP, 1KM, thread: M14x1,5, hub bore: 57,1
VW Jetta V,year:2005-2010, type:1KM, thread: M14x1,5, hub bore: 57,1
VW Jetta VI,year:2011-, type:(162) - 16, thread: M14x1,5, hub bore: 57,1
VW Passat,year:1996-2000, type:3B, thread: M14x1,5, hub bore: 57,1
VW Passat,year of construction:2000-2005, type:3BG, 3BS, thread: M14x1,5, hub bore: 57,1
VW Passat,year of construction:2005-2010, type:3C (B6), thread: M14x1,5, hub bore: 57,1
VW Passat,year of construction:2010-, type:3C (B7), thread: M14x1,5, hub bore: 57,1
VW Passat CC,year of construction:2008-, type:3CC (B6,B7), thread: M14x1,5, hub bore: 57,1
VW Phaeton,year of construction:2002-, type:3D, thread: M14x1,5, hub bore: 57,1
VW Scirocco III,year of construction:2008-, type:13, thread: M14x1,5, hub bore: 57,1
VW Sharan,year of construction:1995-2004, type:7M (small contact surface), thread: M14x1,5, hub bore: 57,1
VW Sharan,year of construction:2004-2010, type:7M (large contact surface), thread: M14x1,5, hub bore: 57,1
VW Sharan,year of construction:2010-, type:7N, thread: M14x1,5, hub bore: 57,1
VW Tiguan,year of construction:2007-, type:5N, thread: M14x1,5, hub bore: 57,1
VW Touran, Touran Cross,year of construction:2003-, type:1T, thread: M14x1,5, hub bore: 57,1
Zulassung:
Festigkeitsnachweis liegt vor (Eintragung erfolgt über eine Einzelabnahme nach § 21 der StVZO)
proof of strength is available (entry is made via an individual acceptance according to § 21 of the StVZO) in Germany
Achse:
Vorder - und Hinterachse
Ausführung:
30mm pro Seite/60mm pro Achse
