TA Technix air suspension with air management suitable for Mercedes Benz E-Class W211

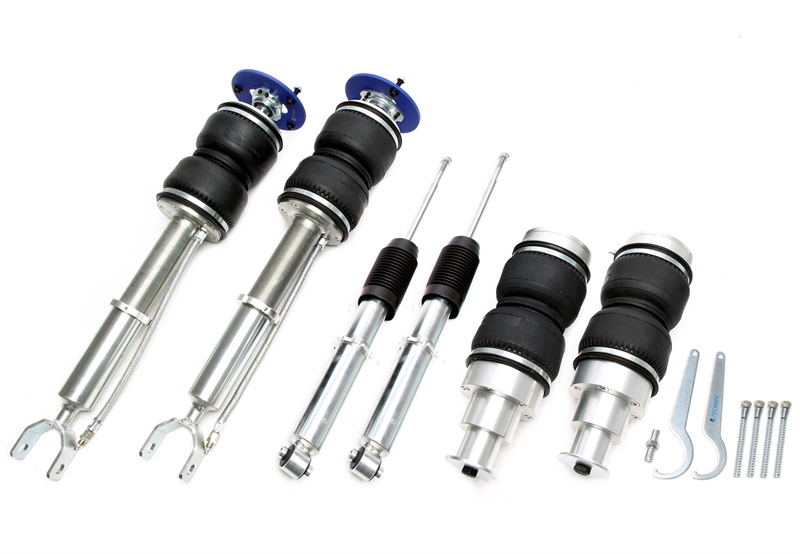

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit
The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.
The following additional functions, among others, can be used with the aid of the enclosed operating instructions and the simple menu navigation:
- 4 driving heights
- Adjustment of the ride height with ignition on and off (Autolevel)
- Axle-by-axle adjustment of the bellows pressure for optimum adjustment of the ride height
- protection against foreign use (offers the possibility to lock the system within 3 seconds to the desired driving height)
- maximum as well as minimum tank pressure (adjustable)
- protection of the on-board power supply by fixable upper and lower limits of the on-board voltage
- freely configurable valve times
- Change of the control unit illumination / ECU illumination
- minimum pressure of the front - as well as rear axle (a falling below triggers an optical warning signal and is necessary for the TÜV registration)
includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- assembled wiring harness
- control unit / ECU
- 3 update cables
- TA Technix 444C supercharger in chrome
- 11,5 litre chrome tank
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves
suitable for:
Mercedes Benz E-Class
Sedan, Type W211
year of construction 2002 - 2008
not for models with 4-Matic + level control + AMG
maximum front axle load: 1045kg
maximum rear axle load: : 1145kg
Zulassung:
inkl. Teilegutachten (§19.3)
Wie bekomme ich das Teilegutachten für mein Luftfahrwerk?
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Unsere Luftfahrwerke sind mit ca. 1-4 cm langen Federwegsbegrenzern ausgestattet, um problemlos eingetragen werden zu können. Für Showzwecke, jedoch NICHT IM BEREICH DER STVZO ZULÄSSIG, können die Fahrwerke ohne diese Begrenzer deutlich tiefer verstellt werden.
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hersteller:
passend für Mercedes Benz
Modell:
E-Klasse
Typ:
W211
Baujahr:
2002 - 2008
VA Last:
1045kg
HA Last:
1145kg
Ausführung:
nicht für Modellle mit 4-Matic + Niveauregulierung + AMG
