TA Technix hardness adjustable air suspension with air management suitable for Audi A3 Quattro (8P)/ Seat Altea XL 4x4 (5P)/ Skoda Octavia II 4x4 (1Z)/ VW Golf V+VI 4motion (1K), Passat 3C/CC 4motion

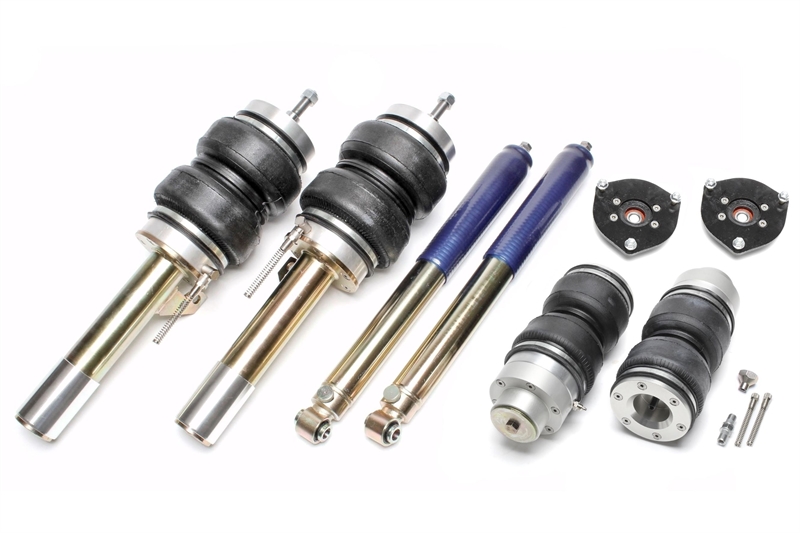

TA Technix Air Damper Set + TA Technix Air Management with Air Generation Kit
The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.
With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:
- 4 driving heights
- Adjustment of the ride height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)
includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves
suitable for:
Audi A3, -Sportback Quattro, type 8P, year of construction 2003 - 2013
Seat Altea XL 4x4, model 5P, year of manufacture 2004 - 2015
Skoda Octavia II estate 4x4, type 1Z, year of construction 2004 -2013
Volkswagen Golf V, - Variant 4motion, Type 1K_, Year of manufacture 2003 - 2009
Volkswagen Golf VI, - Variant 4motion, Type 1K_, Year of manufacture 2008 - 2013
Volkswagen Passat, - Variant, Passat CC, -CC 4motion, Type 3C incl. B7, Year of Construction 2005 -2016
50mm and 55mm suspension strut
maximum front axle load: 1190kg
maximum rear axle load: 1230kg
Zulassung:
inkl. Teilegutachten (§19.3)
Wie bekomme ich das Teilegutachten für mein Luftfahrwerk?
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Bestellen Sie Ihr passendes TA-Technix Luftfahrwerk. Nachdem sie es gekauft haben, senden Sie uns Ihren Fahrzeugschein, Rechnungsnummer oder Kundennummer bitte per E-Mail an luftfahrwerke@tatechnix.de. Anhand Ihrer Daten stellen wir das Gutachten auf Ihr Fahrzeug aus und Sie erhalten das fertige Gutachten per Post.
How do I get the certificate of conformity for my air suspension?
Order your matching TA-Technix air suspension. After you purchased it, please send a copy or scan of your vehicle registration certificate, order number or customer number via e-mail to luftfahrwerke@tatechnix.de. Based on your data, we will issue the certificate for your vehicle and you will receive the finished certificate via mail. For this purpose please send your home adress.
Unsere Luftfahrwerke sind mit ca. 1-4 cm langen Federwegsbegrenzern ausgestattet, um problemlos eingetragen werden zu können. Für Showzwecke, jedoch NICHT IM BEREICH DER STVZO ZULÄSSIG, können die Fahrwerke ohne diese Begrenzer deutlich tiefer verstellt werden.
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hier das Fahrwerk OHNE Teilegutachten anfragen/bestellen!
Our air suspension kits are generally equipped with about 1-4 cm long spring travel limiter to be registered without any problems. For show purposes, but NOT PERMITTED ON PUBLIC ROADS (in Germany), the air suspension can be adjusted significantly lower without the limiter.
Inquire / order the suspension WITHOUT certificate here!
Hersteller:
passend für Audi /Seat / Skoda / Volkswagen
Modell:
A3 Quattro, Altea XL 4x4, Octavia II 4x4, Golf V+VI 4motion, Passat 3C/CC 4motion
Typ:
A3 Quattro Typ 8P inkl. Sportsback,
Altea XL 4x4 Typ 5P,
Octavia Combi 4x4 Typ 1Z,
Golf V 4motion Typ 1K,
Golf VI 4motion Typ 1K,
Golf V+VI Variant 4motion Typ 1K,
Passat 4motion Typ 3C,
Passat CC 4motion Typ 3C,
Baujahr:
2003 -
VA Last:
1190kg
HA Last:
1230kg
Ausführung:
VA = Härteverstellung - stufenlos mittels Einstellrad von oben,
HA = mittels Einstellknopf am Dämpferkörper (Druck+Zugstufe gleichzeitig)
Wir empfehlen die Verwendung kürzerer Koppelstangen, z. B. EVOPE003
